• Epoxy Resin Current Transformers with Molded Case.
• Tough resilient flame retardant UL‐94V0.
• Temperature range –10'C to 70'C
• Metering class 1.0, 0.5
• IEC44‐1, IEC185, BS3938, DIN42600
• Tropicalized design with Insulation Class E and thermal 120'C
• Totally enclosed in tough, self‐extinguishing moldings.
• Safe, easy to install, portable
• Wide inner window, allowing clamping of big cables or bus‐bars
• Wide range of sizes to accommodate all the existing installations

• Epoxy Resin Current Transformers with Molded Case.
• Tough resilient flame retardant UL‐94V0.
• Temperature range –10'C to 70'C
• Metering class 1.0, 0.5
• IEC44‐1, IEC185, BS3938, DIN42600
• Tropicalized design with Insulation Class E and thermal 120'C
• Totally enclosed in tough, self‐extinguishing moldings.
• Safe, easy to install, portable
• Wide inner window, allowing clamping of big cables or bus‐bars
• Wide range of sizes to accommodate all the existing installations

• Resin moulded current transformer.
• Tough resilient flame retardant UL-94V0.
• Temperature range –20°C to 70°C
• Metering class 1.0, 0.5
• Test voltage 3Kv  50Hz. 1min.
• IEC44-1,IEC185,BS3938,DIN42600
• Insulation Class E , Max 120°C
• Totally enclosed in tough, self extinguishing mouldings.
• Operating voltage 0.72KV
•Normal secondary winding 1A or 5A

• Moulded case Split-core Current Transformers.
• Tough resilient flame retardant UL-94V0.
• Temperature range –20°C to 70°C
• Test voltage 3Kv  50Hz. 1min.
• IEC44-1,IEC185,BS3938,DIN42600
• Tropicalised design with Insulation Class E and thermal 120C
• Totally enclosed in tough, self extinguishing moldings.
• Operating voltage 0.72KV

• Encapsulated current transformer.
• Tough resilient flame retardant UL-94V0.
• Temperature range –20°C to 70°C
• Accuracy class 1.0, 0.5
• Test voltage 4Kv  50Hz. 1min.
• IEC44-1,IEC185,BS3938,DIN42600
• Insulation Class E , Max 120°C
• Totally enclosed in tough, self extinguishing mouldings.
• Operating voltage 0.72KV
• Summation current transformer
• Normal secondary winding 1A or 5A

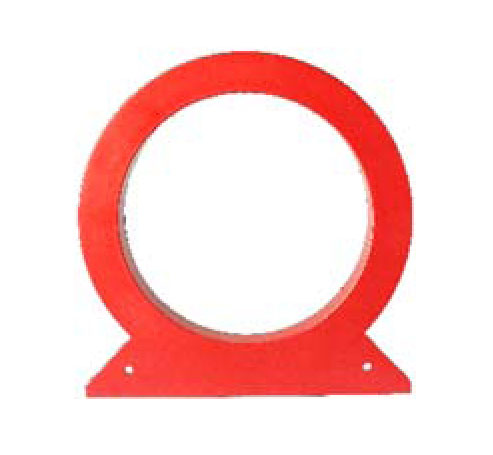

• Ring type current transformer.
• Tough resilient flame retardant.
• Temperature range –20°C to 70°C ,br>
• Protection class 5P5, 5P10, 5P20  etc.
• Test voltage 4Kv  50Hz. 1min.
• IEC44-1,IEC185,BS3938,DIN42600
• Tropicalised design with Insulation Class A and thermal 105°C
• Totally enclosed in tough with self extinguishing.
• Operating voltage 0.66 KV

• Ring Type current transformer.
• Temperature range –20°C to 70°C
• Metering class 1.0, 0.5
• Test voltage 4Kv  50Hz. 1min.
• IEC44-1,IEC185,BS3938,DIN42600
• Tropicallised design with Insulation Class A and thermal 105°C
• Totally enclosed in tough and robust.
• Operating voltage 0.6KV
• Available for large busbar or cable

• Encapsulated current transformer.
• Tough resilient flame retardant UL-94V0.
• Temperature range –20°C to 70°C
• Metering class 1.0, 0.5
• Test voltage 4Kv  50Hz. 1min.
• IEC44-1,IEC185,BS3938,DIN42600
• Insulation Class F , 105°C
• Tropicalised design with Insulation Class E and thermal 120°C
• Operating voltage 0.72KV

• Encapsulated current transformer.
• Tough resilient flame reterdant UL-94V0.
• Temperature range -20°C to 70°C
• Meterature class 1.0, 0.5
• Test voltage 4Kv 50Hz. 1 min.
• IEC44-1,IEC185,BS3938,DIN42600
• Tropicallised design with Insulation Class E and thermal 120°C
• Totally enclosed in tough, self extinguishing mouldings.
• Operating voltage 0.66KV
