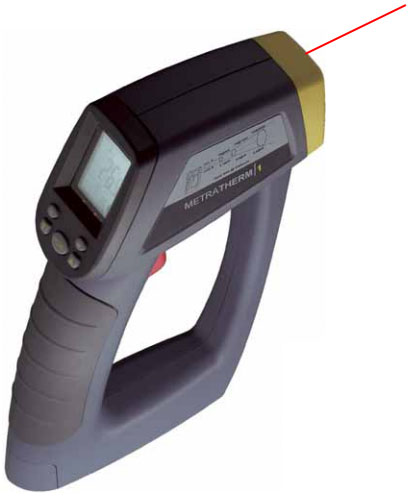

• Infrared temperature measuring range: –50 to 1000 °C (–58 to 1832 ºF)
• Exact positioning with laser sighting (can be activated if desired)
• High distance-to-spot (D:S) ratio: 50:1
• Emissivity adjustable from 0.1 to 1.00 in steps of 0.01
• Additional measuring option with type K thermocouple
• Illuminated LCD panel
• Selectable unit of measure: °C and °F
• Single and continuous measurements
• Storage of current measured temperature, lowest and highest
  temperature or maximum temperature difference T
• 10 memory locations for individual measurements
• Alarm function: Acoustic signal in the event of violation of
  adjustable limit values
• USB interface for data transmission to a PC
• PC software for displaying and recording measured values
  (data logger function) on included CD ROM

• Digital Hand-Held Multimeters with RMS Measurement
  VAC TRMS, VAC+DC TRMS, VDC, Hz (V), Hz (A), -►, V , °C/°F (TC)
• 4½-place display (11,999 digits), with display illumination
  METRAHIT-BASE
• Current measurement via clip-on current sensors:
  The transformation factor is adjustable from 1 mV:1 mA to
  1 mV:1 A and is accounted for by the display.
  METRAHIT-TECH
• Direct Current measurement with increased accuracy and
  Current measurement, via clip-on current transformer and sensors
• Broad range capacitance measurement

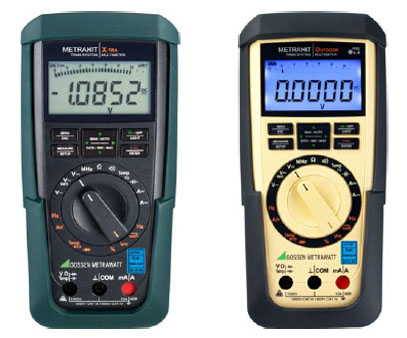

  METRAHIT-X-TRA-OUTDOORTECHPRO
• Additional “low-resistance” (1 M) alternating voltage measurement
• 1 kHz / -3 dB low-pass filter can be activated
  METRAHIT-X-TRA-OUTDOOR
• Direct current measurement from 10 nA to 10 A, 16 A for short periods
• Temperature measurement with Pt100(0) resistance thermometer
• Broad range capacitance measurement
• Frequency and duty cycle measurement at2 to 5V signals or up to 1 MHz
• Data memory and bidirectional infrared interface
  METRAHIT- OUTDOOR
• Extremely rugged, dust and water-proof variant with
  IP 65 protection

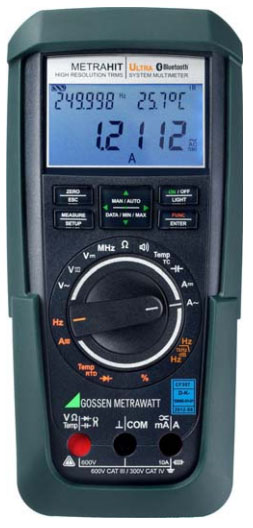

• Handheld digital multimeter with TRMS measurement including,
  amongst other measuring functions:
  V AC TRMS, V AC+DC TRMS, V DC,
  A AC TRMS, A AC+DC TRMS, A DC
  dB, Hz(V), Hz(A), ◄ , V , °C / °F (TC/RTD)
• Resolution of 310,000 digits, triple display, display illumination
  can be activated under difficult lighting conditions
• 1 kHz / -3 dB low-pass filter can be activated in the alternating
  voltage measuring ranges
• 1 nA to 10 A direct current measurement, 16 A short-term,
  current measurement with current clamp transformers and sensors
  (transformation ration is accounted for by the display)
• Temperature measurement with Pt100/Pt1000 resistance thermometer
• Broad range capacitance measurement
• TRMS AC and AC + DC, 100 kHz bandwidth
• Measurement data memory for up to 300,000 measured values
• Instrument can be remote controlled via IR interface with optional
  accessory: USB X-TRA (Z216C)
• Instrument can be remote controlled via Bluetooth interface
  (M248B variant only)
• Connector jack for external power pack

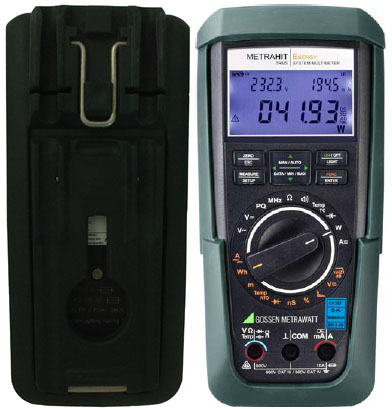

• Digital hand-held multimeter with TRMS measurement including:
  V AC TRMS, V AC+DC TRMS with a bandwidth of 100 kHz, V
  DC, dB, Hz (V), Hz (A), ◄, μF, V , °C/°F (TC/RTD)
• Power measurement (W, VAr, VA, PF): active, reactive and
  apparent power with extreme values, power factor
• Energy measurement (Wh, VArh, VAh)
  active, reactive and apparent energy, mean power value with
  adjustable observation period and maximum value
• Mains quality analysis: recording of over and undervoltage,
  dips, swells, voltage peaks and transients in 0, 50 and 60 Hz
  systems
• Harmonic analysis: RMS values and distortion components up
  to the 15th harmonic at 16.7, 50, 60 and 400 Hz
• Special measuring functions: crest factor CF, conductivity nS,
  low resistance RSL, duty cycle %, cable length km
• Resolution of 60,000 digits, triple display, display illumination
  can be activated under difficult lighting conditions
• 1 kHz / –3 dB low-pass filter can be activated
• Direct current measurement from 10 nA to 10 A, 16 A intermittently,
  current measurement with current transformer clamp and
  sensors, transformation ratio is taken into account at the display
• Large data memory for up to 300,000 measured values
• Instrument is completely remote controllable without activating
  the rotary switch or changing current sockets

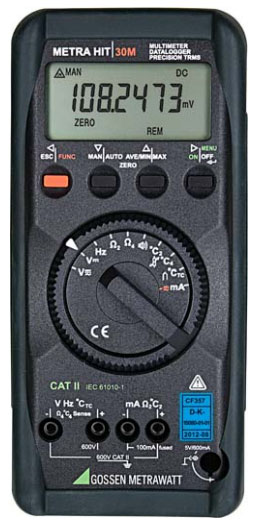

• Precision multimeter (V, mA, Ω, Hz, °C/°F) and data logger
• 1,200,000 digit display range
  High resolution for   :
  DC/AC+DC voltage    :     100 nV/1 μV
  DC and AC+DC Current     :      100 pA
• TRMS AC+DC
• Milliohmmeter with 2 and 4-wire connection
  Resolution: 0.1 mΩ
• Precision temperature meter, °C and °F
  for Pt100/Pt1000 sensors with 2/4-wire connection,
  Resolution: 0.01 °C/°F
  for J and K thermocouples, resolution: 0.1 °C/°F,
  internal or external reference junction can be selected
• Large capacity measurement value memory: 128 kB
• Windows software for remote control, parameter settings,
  processing and graphic representation of measurement
  values via RS 232 interface as accessory
• DAkkS calibration certificate included

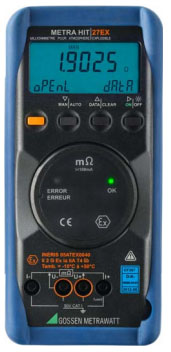

• Measuring ranges: 30 mΩ , 300 mΩ, 3 Ω, 30 Ω
• Resolution: 10 μΩ
• Measuring method: Kelvin connection (4-wire measurement)
• DATA Hold memory: 1200 measured values
• EX designation: Ex II 2 G Ex ia IIA T4 Gb
• Prototype test certificate: INERIS 05ATEX0040
• DAkkS calibration certificate
• Included Kelvin probe, Kelvin clip, batteries,
   accessories: protective rubber holster, hard case
• Guarantee: 3 years material and workmanship, 1 to 3 years
   for calibration (depending upon application
